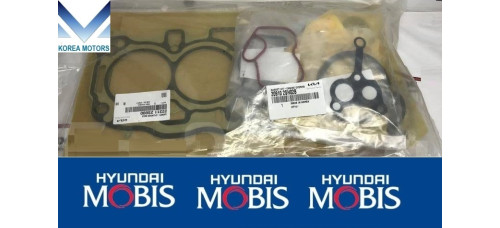

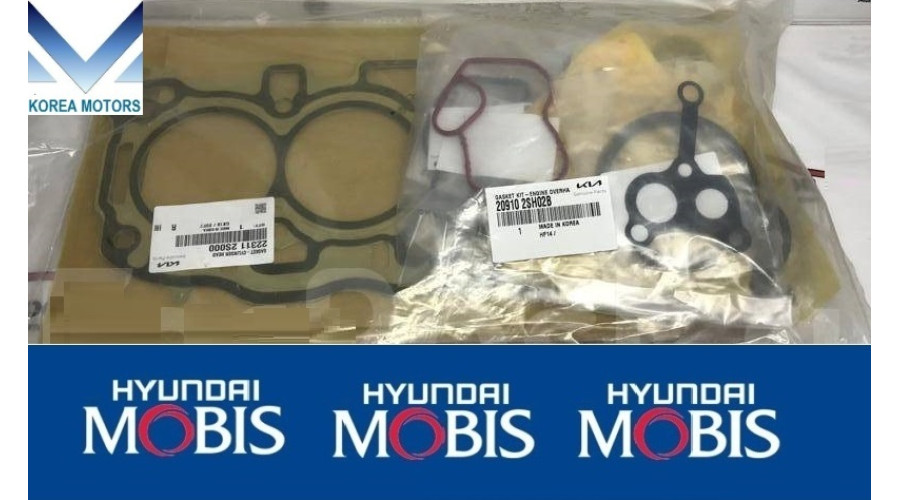

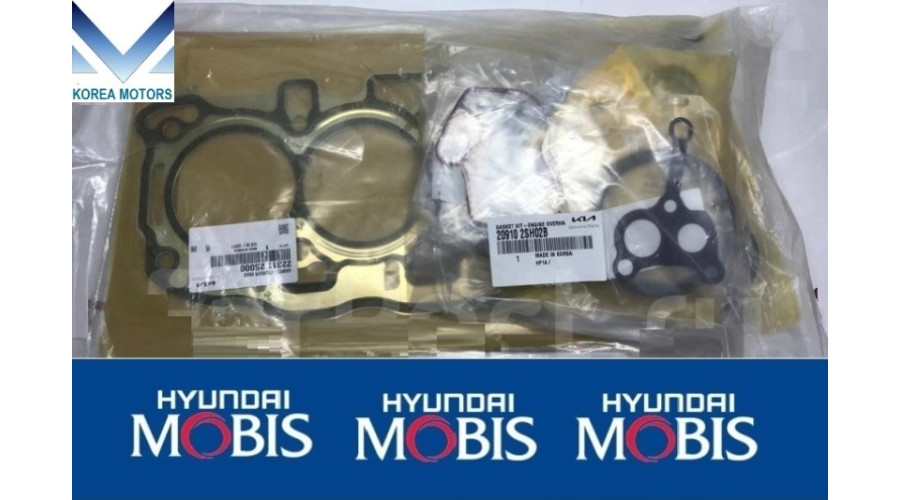

The gasket kit-engine overhaul for petrol engine G4KN GDI of Hyundai and Kia cars 2019-24 year

This gasket kit for gasoline Smartstream 2.5 GDi Theta-III R4-cylinder 16 valve engine is a complete assembly manufacturing Mobis.

A gasket is a mechanical seal which fills the space between two or more mating surfaces, generally to prevent leakage from or into the joined objects while under compression. It is a deformable material that is used to create a static seal and maintain that seal under various operating conditions in a mechanical assembly. Gaskets allow for "less-than-perfect" mating surfaces on machine parts where they can fill irregularities. Gaskets are commonly produced by cutting from sheet materials. Given the potential cost and safety implications of faulty or leaking gaskets, it is critical that the correct gasket material is selected to fit the needs of the application.Gaskets for specific applications, such as high pressure steam systems, may contain asbestos. However, due to health hazards associated with asbestos exposure, non-asbestos gasket materials are used when practical.

Set of gaskets for repair and service of the engine and attachments.

Part code: 20910-G4KN

Displacement cc: 2497 (2.5 liters), Power 183-195hp (140-146kWt)

Fuel: Gasoline (Smartstream GDI+MPi, Dual CVVT)

Engine Capacity: 2500 CC - THETA-III

Displacement cc: 2359 (2.4 liters), Power 195-291Hp (130kWt), water-cooled, timing belt

Fuel: Gasoline (DOHC - GDI, MPi)

Number of cylinders: Cylinder head type R4, 16vl (valves)

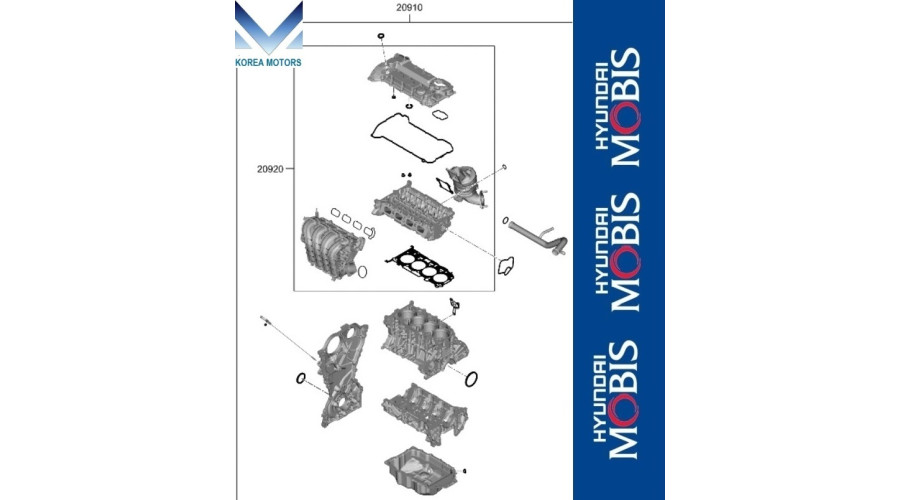

Part Number: 209102SH02B 209102SH01 209102SH02 GASKET KIT-ENGINE OVERHAUL

Vehicle Type: Hyundai Grandeur/Azera (IG) (2019–22)

                        Hyundai Grandeur/Azera (GN7) (2022–25)

                        Hyundai Santa Cruz (2021–25)

                        Hyundai Santa Fe (TM) (2020–23)

                        Hyundai Santa Fe (MX5) (2023–25)

                        Hyundai Sonata (DN8) (2019–25)

                        Hyundai Tucson (NX4) (2020–25)

                        Kia K5 (DL3) (2019–25)

                        Kia K8 (GL3) (2021–25)

                        Kia Sorento (MQ4) (2020–25)

MANUFACTURER: MOBIS

ORIGIN: MADE IN KOREA

ATTENTION: For verification, compatible of specification lamps after place order need indicate VIN-code of car!

SHIPPING: Shipping international by EMS (UPS) air-parcel door to door service available. Delivery time depend of final country of destination 5-10 days.
