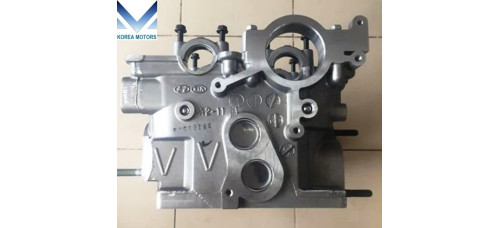

The new cylinder head EURO-5/6 for engine A2 diesel D4CB from Mobis manufacture for Hyundai and Kia vehicles 2012-15 year.

In a piston engine, the cylinder head sits above the cylinders, forming the roof of the combustion chamber. Inside valve engines the head is a simple plate of metal containing the spark plugs and possibly heat dissipation fins. In more modern overhead valve and overhead camshaft engines, the head is a more complicated metal block that also contains the inlet and exhaust passages, and often coolant passages, valvetrain components, and fuel injectors.

Part name: 20-221B D4CB-A2 2012-20Y

Engine Name: D4CB-DOHC

Included: HEAD ASSY-CYLINDER SET - 1 Unit

Displacement cc: 2476 (2.5 liters), Power 174Hp (120kVt), water-cooled, timing belt

Fuel: Diesel (DT, VGT, CRDI)

Number of cylinders: Cylinder head type R4, 16vl (valves)

Part numbers Available Options for choose:

1. 22110B SUB ASSY - 4J0444AU01 4J0844AU00 221004A701 221004A400 221004A600 221004A620 5J0254AU00 HEAD ASSY-CYLINDER 22100 15.12.2017 - ... BODY TYPE: VAN LONG - 5P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO – 5 SPEED 2WD; (2841MA) EMISSION REGULATION - DOM EURO 6 - 1pcs

Part numbers Available Options for choose:

1. 22010 COMPT SUB ASSY (+USD:610.00$.) - 4J0444AU01 CYLINDER HEAD COMPT SUB ASSY 22010 15.12.2017 - ... ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL – DIESEL - 1pcs

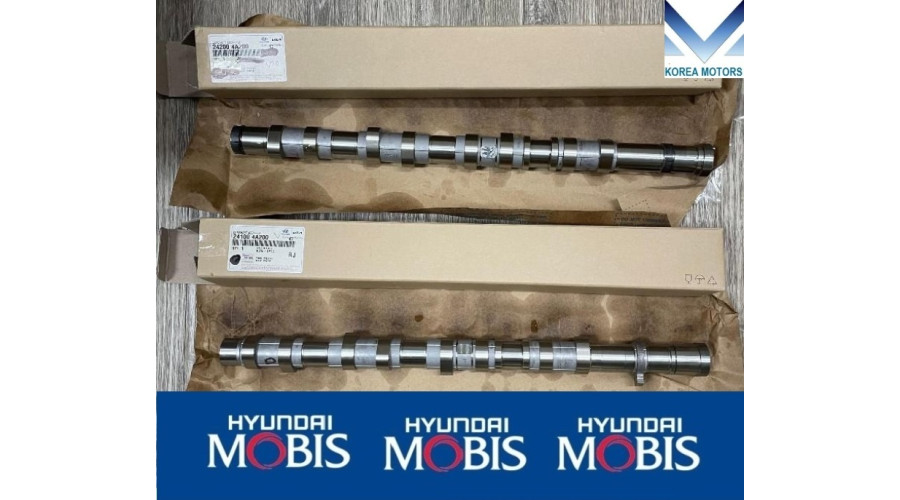

2. 242004A500 CAMSHAFT ASSY-RH – 1pcs

3. 241004A100 CAMSHAFT ASSY-LH – 1pcs

4. 222124A060 VALVE-EXHAUST – 8pcs

5. 222114A061 VALVE-INTAKE – 8pcs

6. 222224A060 RETAINER-VALVE SPRING – 16pcs

7. 222214A000 SPRING-VALVE – 16pcs

8. 222234A060 LOCK-VALVE SPRING RETAINER – 32pcs

9. 222244A000 SEAL-VALVE STEM – 16pcs

10. 241804A010 ASSY-CAM FOLLOWER, LONG – 8pcs

11. 241704A010 ASSY-CAM FOLLOWER, SHORT – 8pcs

12. 222314A000 ADJUSTER ASSY-ROCKER ARM LASH – 16pcs

Vehicle Type: Hyundai Porter-2 / H-100 2012-20 year

                        Hyundai H1 / Grand Starex / iLOAD 2012-20 year

                        Kia Bongo-3 /K2500/K2700 2012-20 year

MANUFACTURER: MOBIS

ORIGIN: MADE IN KOREA

ATTENTION: For verification, compatible of specification lamps after place order need indicate VIN-code of car!

SHIPPING:
Shipping international air-parcel EMS door to door service available. Delivery time depend on final country of destination 5-10 days.
Please note:
Update catalog does not happen every day, some new arrivals are not uploaded to the site. If you cannot find in the proposed range of desired engine contract, gearbox, etc., please make an inquiry and convenient way, we can offer options for you.
