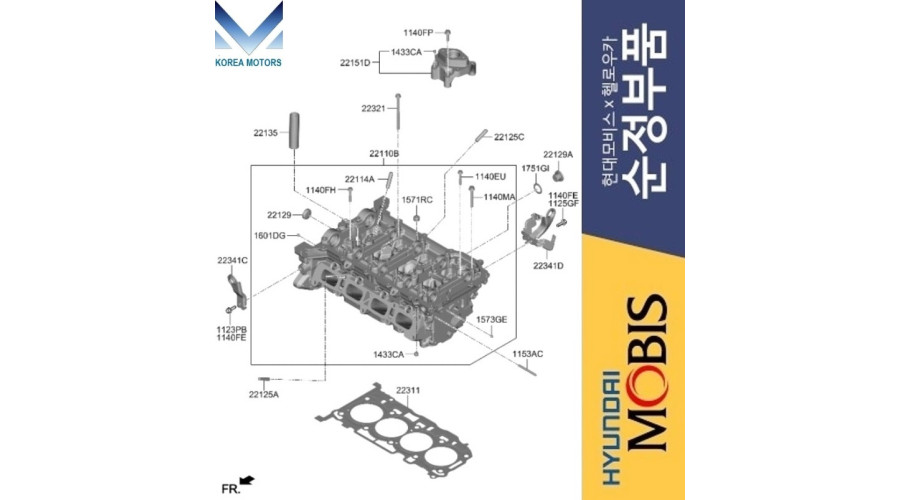

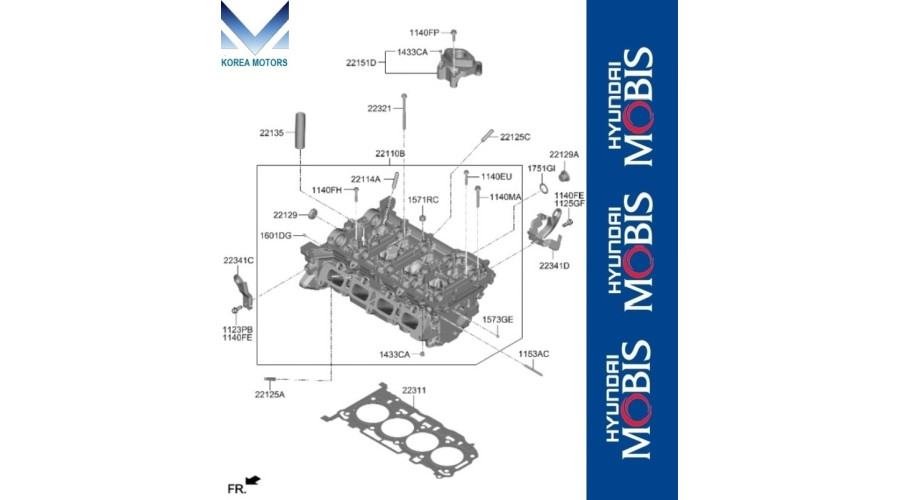

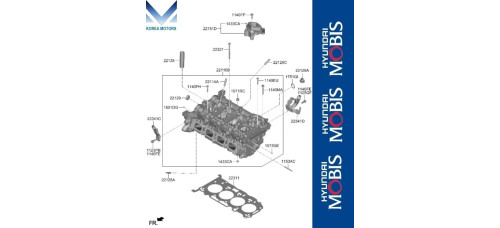

The new cylinder head for gasoline L4 engine GDI g4kn from Mobis manufacture for Hyundai and Kia vehicles 2019-24 year.

In a piston engine, the cylinder head sits above the cylinders, forming the roof of the combustion chamber.  In more modern overhead valve and overhead camshaft engines, the head is a more complicated metal block that also contains the inlet and exhaust passages, and often coolant passages, Valvetrain components, and fuel injectors.

Head cylinder name: 22110B 19-24

Engine Name: G4KN-GDi

Included: HEAD ASSY-CYLINDER SET – 1 Unit

Displacement cc: 2497 (2.5 liters), Power 183-195hp (140-146kWt)

Fuel: Gasoline (Smartstream GDI+MPi, Dual CVVT)

Number of cylinders: Cylinder head type 16vl, Dual CVVT

Part Number: 5X11M2SA01 221102S000 342L52SK00

Vehicle Type: Hyundai Grandeur/Azera (IG) (2019–22)

                        Hyundai Grandeur/Azera (GN7) (2022–25)

                        Hyundai Santa Cruz (2021–25)

                        Hyundai Santa Fe (TM) (2020–23)

                        Hyundai Santa Fe (MX5) (2023–25)

                        Hyundai Sonata (DN8) (2019–25)

                        Hyundai Tucson (NX4) (2020–25)

                        Kia K5 (DL3) (2019–25)

                        Kia K8 (GL3) (2021–25)

                        Kia Sorento (MQ4) (2020–25)

MANUFACTURER: MOBIS

ORIGIN: MADE IN KOREA

ATTENTION: To check the compatibility of parts according to the specification, when ordering, you must specify the VIN code of the vehicle chassis!

SHIPPING:

Shipping international air-parcel EMS UPS door-to-door service available. Delivery time depend on final country of destination 5-10 days.
