The new converter catalytic euro-6 for engine d4ha d4hb diesel from Mobis manufacture for vehicles Hyundai and Kia 2018-25 year

    Diesel exhaust contains relatively high levels of particulate matter. Catalytic converters remove only 20–40% of PM so particulates are cleaned up by a soot trap or diesel particulate filter (DPF). Wall-flow diesel particulate filters usually remove 85% or more of the soot, and under certain conditions can attain soot removal efficiencies approaching 100%. Some filters are single-use, intended for disposal and replacement once full of accumulated ash. Others are designed to burn off the accumulated particulate either passively through the use of a catalyst or by active means such as a fuel burner which heats the filter to soot combustion temperatures. This is accomplished by engine programming to run (when the filter is full) in a manner that elevates exhaust temperature, in conjunction with an extra fuel injector in the exhaust stream that injects fuel to react with a catalyst element to burn off accumulated soot in the DPF filter, or through other methods. This is known as filter regeneration. Cleaning is also required as part of periodic maintenance, and it must be done carefully to avoid damaging the filter. Failure of fuel injectors or turbochargers resulting in contamination of the filter with raw diesel or engine oil can also necessitate cleaning. The regeneration process occurs at road speeds higher than can generally be attained on city streets; vehicles driven exclusively at low speeds in urban traffic can require periodic trips at higher speeds to clean out the DPF. If the driver ignores the warning light and waits too long to operate the vehicle above 60 km/h (40 mph), the DPF may not regenerate properly, and continued operation past that point may spoil the DPF completely so it must be replaced. Some newer diesel engines, namely those installed in combination vehicles, can also perform what is called a Parked Regeneration, where the engine increases RPM to around 1400 while parked, to increase the temperature of the exhaust.

Diesel engines produce a variety of particles during the combustion of the fuel/air mix due to incomplete combustion. The composition of the particles varies widely dependent upon engine type, age, and the emissions specification that the engine was designed to meet. Two-stroke diesel engines produce more particulate per unit of power than do four-stroke diesel engines, as they burn the fuel-air mix less completely.

Diesel particulate matter resulting from the incomplete combustion of diesel fuel produces soot (black carbon) particles. These particles include tiny nanoparticles smaller than one micrometre (one micron). Soot and other particles from diesel engines worsen the particulate matter pollution in the air and are harmful to health. New particulate filters can capture from 30% to greater than 95% of the harmful soot. With an optimal diesel particulate filter (DPF), soot emissions may be decreased to 0.001 g/km or less.

The quality of the fuel also influences the formation of these particles. For example, a high sulphur content diesel produces more particles. Lower sulphur fuel produces fewer particles, and allows use of particulate filters. The injection pressure of diesel also influences the formation of fine particles.

The converter catalytic is installed on the specified engine models according to the catalog and specification of MOBIS original spare parts.

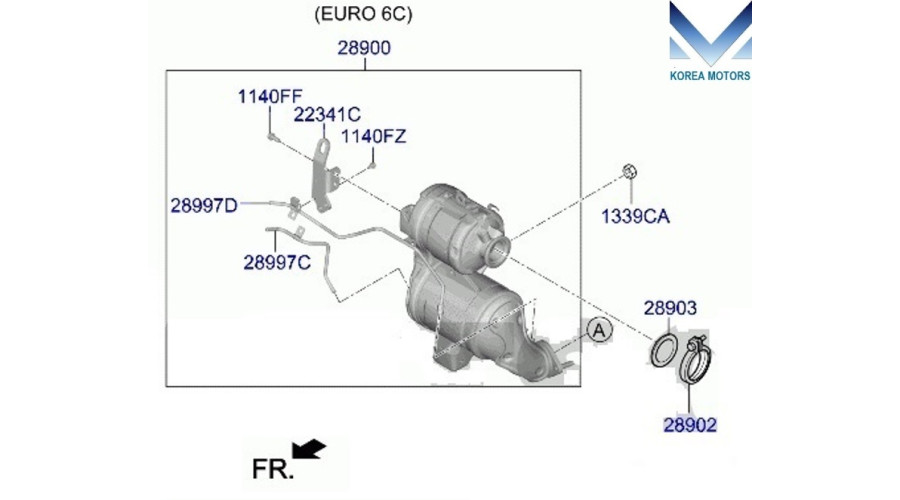

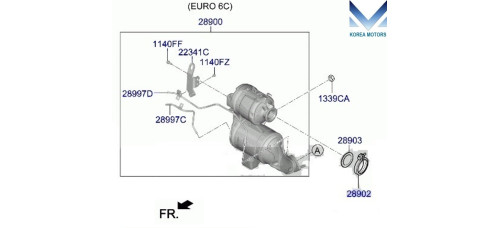

Part name: 28900 18-25
Engine Name: D4HA, D4HB
Displacement cc: 1996-2198 (2.0-2.2 liters), Power 184-197Hp (128kWt), water-cooled, timing chain
Fuel: Diesel (DT, TCI, CRDI)
Number of cylinders: Cylinder head type R4, 16vl (valves)
Model Number: 289B02F150, 289B02F140
Vehicle Type: Hyundai Santa Fe 2018-25 year
                        Hyundai Tucson 2018-25 year
                        Kia Sportage 2018-25 year
                        Kia Sorento 2018-25 year
                        Kia Carnival/Sedona 2018-25 year
MANUFACTURER: MOBIS
ORIGIN: MADE IN KOREA
ATTENTION: To check the compatibility of parts according to the specification, when ordering, you must specify the VIN code of the vehicle chassis!

SHIPPING: Shipping international by EMS UPS air-parcel door-to-door service and sea cargo available. Delivery time by air-parcel 5-10 days and sea cargo 20-35 days depend on final country of destination.
