MOBIS FRONT REAR BUMBER HYUNDAI STAREX H-1 2007-17

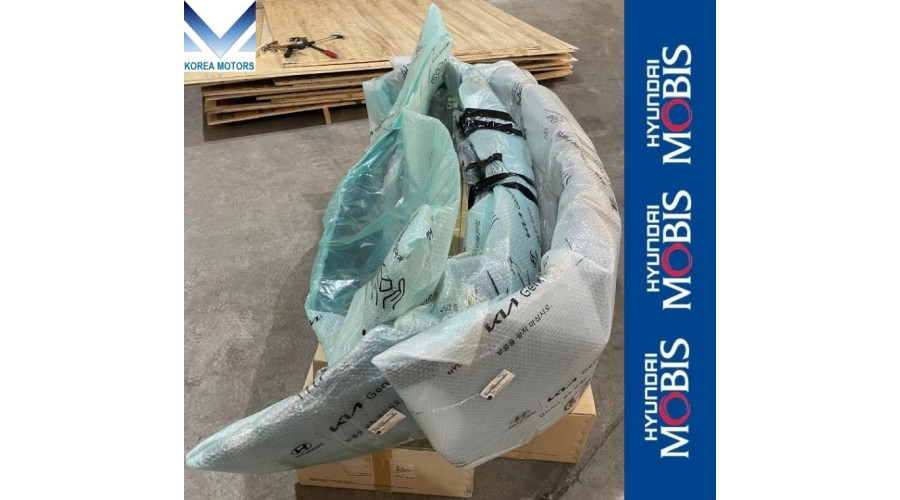

New front and rear bumpers completed assembly from Mobis for Hyundai Starex H-1 iLOAD 2007-17 year.

The new front and rear bumpers include all items from the Mobis catalogue in a complete set and ready for installation on the vehicle for the front and rear parts of the body.
Part Name:
86-865: FRONT BUMPER
86-866:REAR BUMPER
Displacement cc: 1591-1991 (1.6-2.0 liters), Power 140-160Hp (118kWt), water-cooled, timing chain
Fuel: Gasoline (DOHC-MPI, GDI, TCI)
Number of cylinders: Cylinder head type L4, 16VL CVVL, Dual CVVT
Part Numbers:

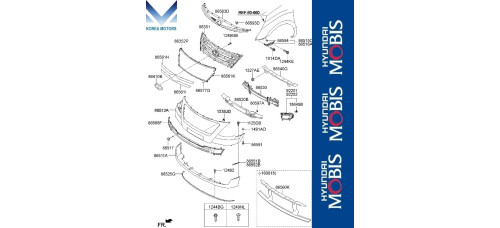

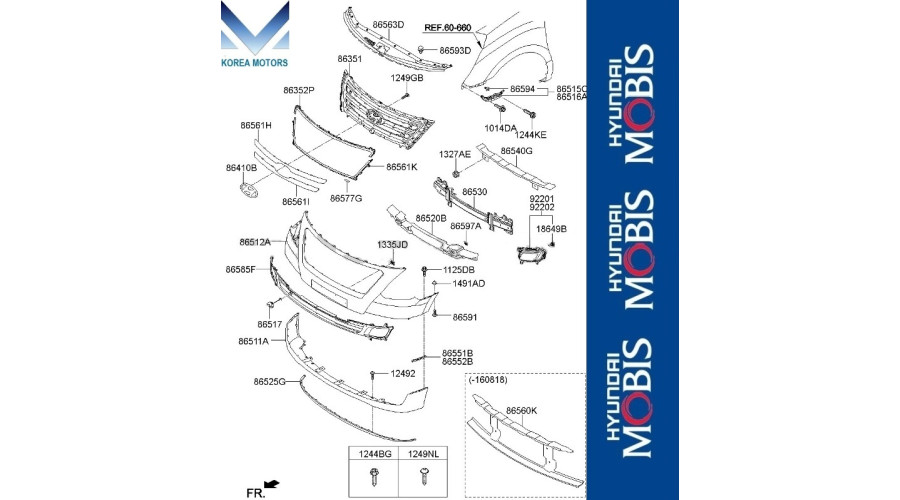

86-865:FRONT BUMPER CONTENT STAREX H-1 iLOAD
1. 865634H000 UPPER PIECE-RADIATOR GRILLE 86563D – 1pcs
2. 865952T500 CLIP 86593D – 17pcs
3. 865614H500 GRILLE-RADIATOR 8635 – 11pcs
4. 1249205167B SCREW-TAPPING 1249GB – 10pcs
5. 1249205167E SCREW-TAPPING 1249GB – 43pcs
6. 865154H000 BRACKET-FR BUMPER SIDE MTG,LH 86515C – 1pcs
7. 866251E000 RETAINER-BUMPER SIDE MTG 86594 – 6pcs
8. 863554H500 PIECE-RADIATOR GRILLE,UPR 86352P – 1pcs
9. 865164H000 BRACKET-FR BUMPER SIDE MTG,RH 86516A – 1pcs
10. 863534H500 PIECE-RADIATOR GRILLE NO.1 86561H – 1pcs
11. 1125406257B BOLT-WASHER ASSY 1014DA – 2pcs
12. 1244206207B SCREW-TAPPING 1244KE – 6pcs
13. 865324H600 REINFORCEMENT ASSY-BUMPER,CTR 86540G – 1pcs
14. 1327106007B NUT-WASHER ASSY 1327AE - 4pcs
15. 863564H500 PIECE-RADIATOR GRILLE NO.4 86561K – 1pcs
16. 863004H500 SYMBOL MARK-H 86410B – 1pcs
17. 865304H100 RAIL ASSY-FR BUMPER 86530 – 1pcs
18. 865774H500 ANTINOISE PAD-BUMPER MOULDING 86577G – 3pcs
19. 922014H100 LAMP ASSY-FRONT FOG,LH 92201 – 1pcs
20. 863544H500 PIECE-RADIATOR GRILLE NO.2 86561I – 1pcs
21. 922024H100 LAMP ASSY-FRONT FOG,RH 92202 – 1pcs
22. 865204H600 ABSORBER-FRONT BUMPER ENERGY 86520B – 1pcs
23. 8659717000 STAPLE-BUMPER MTG 86597A – 2pcs
24. 1864935009L BULB 18649B – 2pcs
25. 865124H500 COVER-FR BUMPER UPR 86512A – 1pcs
26. 1335705036 NUT-SPRING 1335JD – 4pcs
27. 865854H500 FOG GRILLE-FRT BPR 86585F – 1pcs
28. 1125106206B BOLT 1125DB – 4pcs
29. 1491005000 RETAINER-TAPPING SCREW 1491AD – 2pcs
30. 865793K000 TAPPING SCREW-BUMPER MTG 86591 – 2pcs
31. 865174H500 CAP-FRONT HOOK 86517 – 1pcs
32. 865114H500 COVER-FR BUMPER 86511A – 1pcs
33. 865514H500 BRACKET-FR BUMPER UPR SIDE MTG,LH 86551B – 1pcs
34. 865524H500 BRACKET-FR BUMPER UPR SIDE MTG,RH 86552B – 1pcs
35. 1249204147B T/SCREW-FLANGE HEAD 12492 – 19pcs
36. 865254H500 LIP-FRONT BUMPER 86525G – 1pcs
37. 1249305207E SCREW-TAPPING 1249NL – 2pcs
38. 1244106207B SCREW-TAPPING 1244BG – 4pc

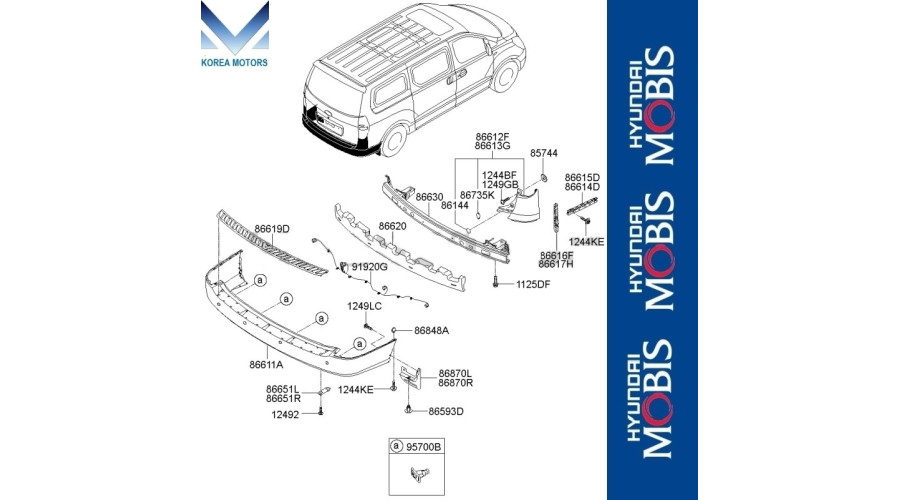

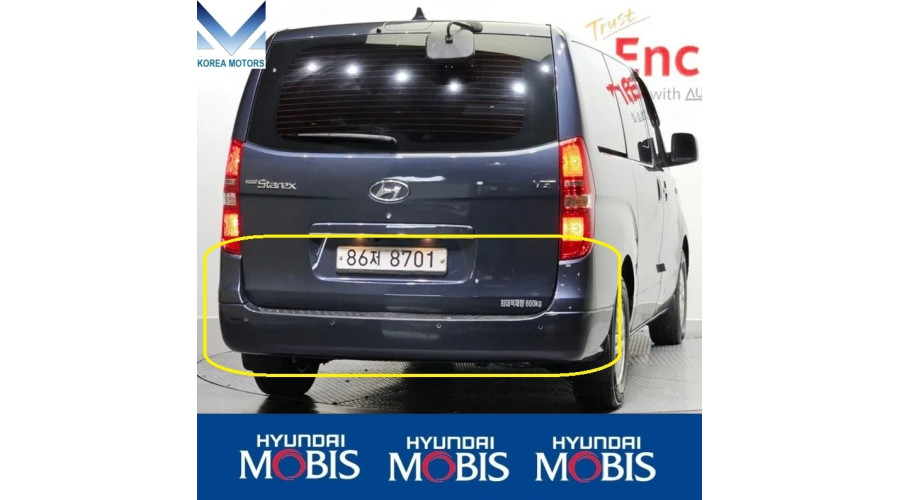

86-866:REAR BUMPER CONTENT STAREX H-1 iLOAD
1. 866124H000 GARNISH ASSY-GUSSET,LH 86612F – 1pcs
2. 866134H000 GARNISH ASSY-GUSSET,RH 86613G – 1pcs
3. 8574428000 GROMMET ASSY-SCREW 85744 – 8pcs
4. 1244105167B SCREW-TAPPING 1244BF – 4pcs
5. 866154H000 BRACKET ASSY-RR BUMPER SIDE MTG 86615D – 1pcs
6. 1249205167B SCREW-TAPPING 1249GB – 4pcs
7. 866144H000 BRACKET-RR BUMPER SIDE MTG,RH 86614D – 1pcs
8. 866674H000 CAP 86735K – 2pcs
9. 866304H000 RAIL ASSY-REAR BUMPER 86630 – 1pcs
10. 866944H000 PAD-ANTINOISE 86144 – 1pcs
11. 866204H000 ABSORBER-REAR BUMPER ENERGY 86620 – 1pcs
12. 866364H000 STEP PLATE-RR BUMPER 86619D - 1pcs
13. 1244206207B SCREW-TAPPING 1244KE – 14pcs
14. 866164H000 BRACKET-RR BUMPER SIDE MTG,RH 86616F – 1pcs
15. 866174H000 BRACKET-RR BUMPER SIDE LWR,LH 86617H – 1pcs
16. 919204H010 WIRING ASSY- B.W.S 91920G – 1pcs
17. 1125110256B BOLT 1125DF – 4pcs
18. 1249304107B SCREW-TAPPING 1249LC – 6pcs
19. 8684822000 RETAINER 86848A – 2pcs
20. 866114H020 COVER-RR BUMPER 86611A – 1pcs
21. 868704H000 GUARD ASSY-REAR MUD,LH 86870L – 1pcs
22. 868804H000 GUARD ASSY-REAR MUD,RH 86870R – 1pcs
23. 866514H000 BRACKET-STEP MTG,LH 86651L – 1pcs
24. 866524H000 BRACKET-STEP MTG,RH 86651R – 1pcs
25. 865952T500 CLIP 86593D – 5pcs
26. 1249204127B T/SCREW-FLANGE HEAD 12492 – 7pcs
27. 957004H300RB5 SENSOR ASSY-ULTRASONIC BWS 95700B – 4pcs
INCLUDED: COMPLETE ASSEMBLY 86-865: FRONT BUMPER AND 86-866: REAR BUMPER SPECIFICATIONS – 2 Kits

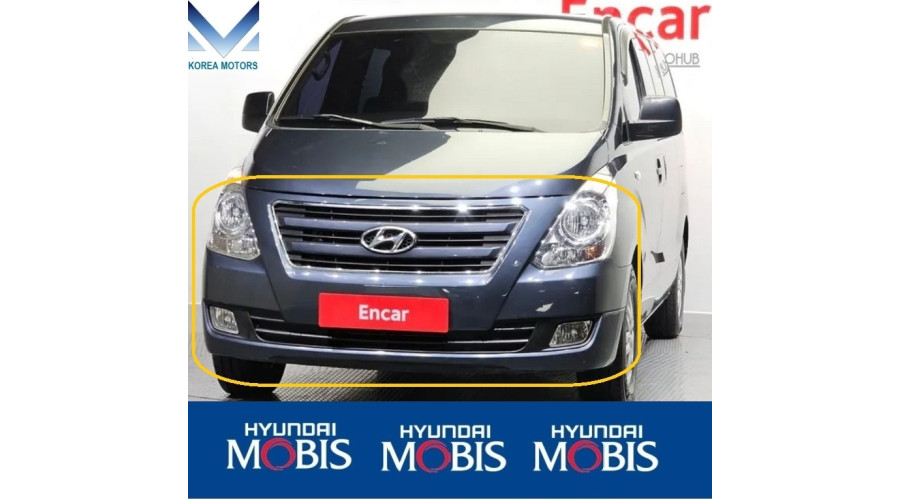

Vehicle compatible: Hyundai Starex / H-1 / iLOAD – 2007-17
MANUFACTURER: MOBIS
ORIGIN: MADE IN KOREA

ATTENTION: To check the compatibility of parts according to the specification, when ordering, you must specify the VIN code of the vehicle chassis!

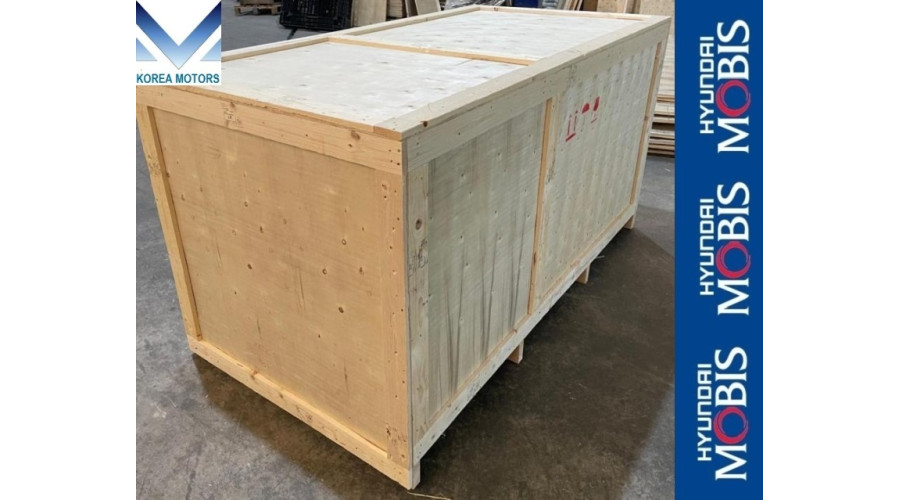

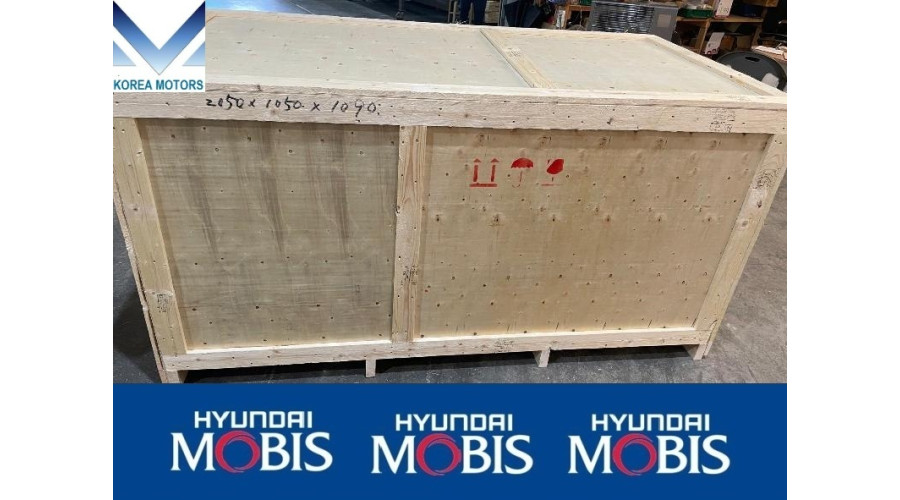

SHIPPING: Shipping worldwide only by UPS air-parcel "Door-to-door" service 3-10 days to any country.
