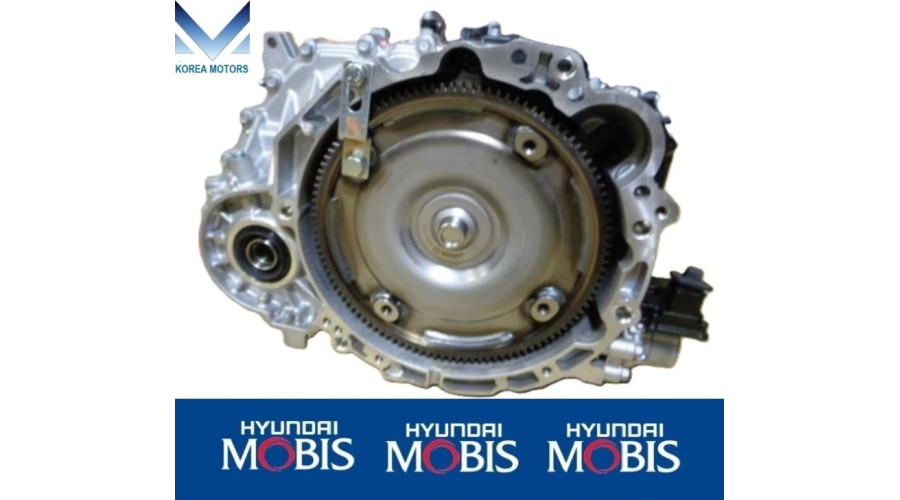

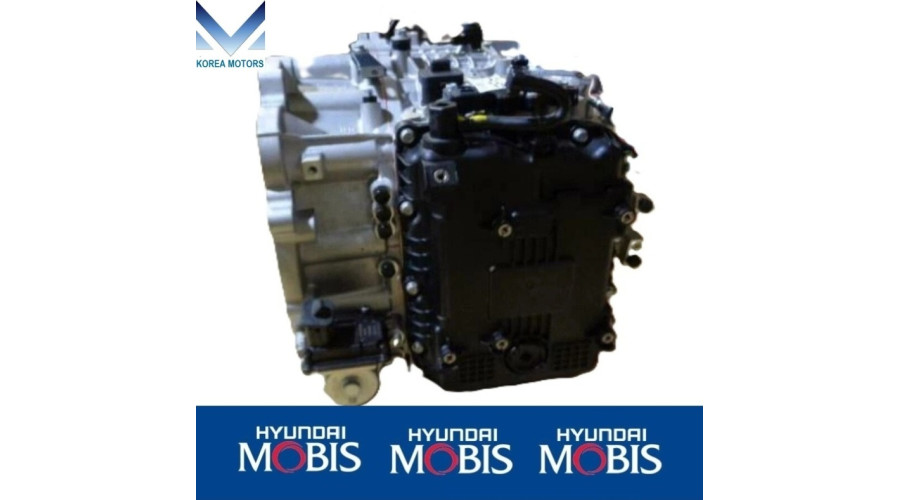

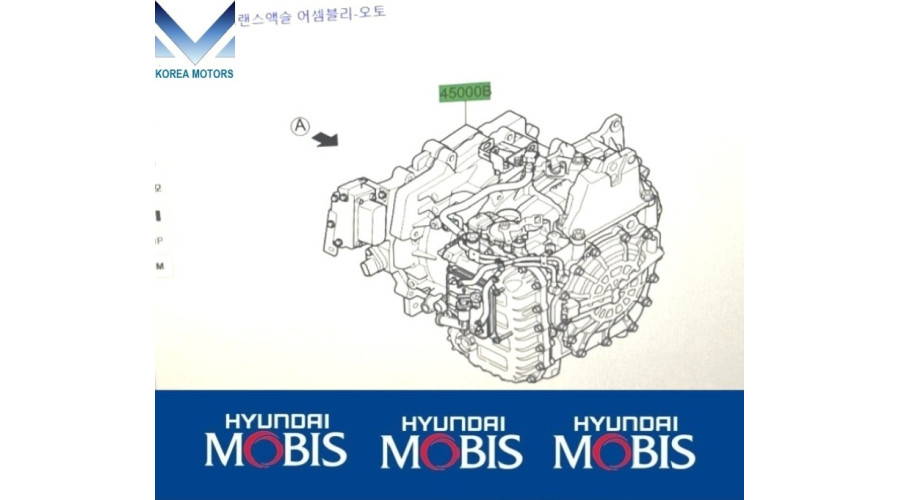

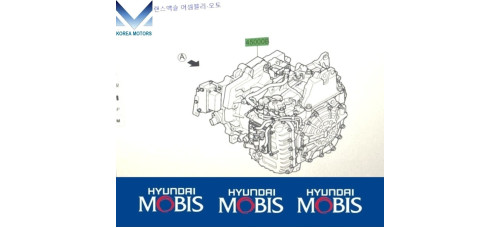

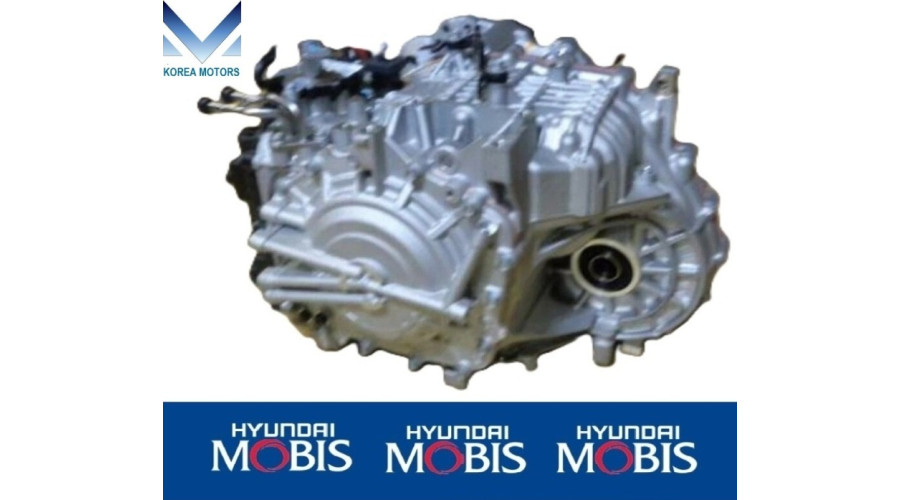

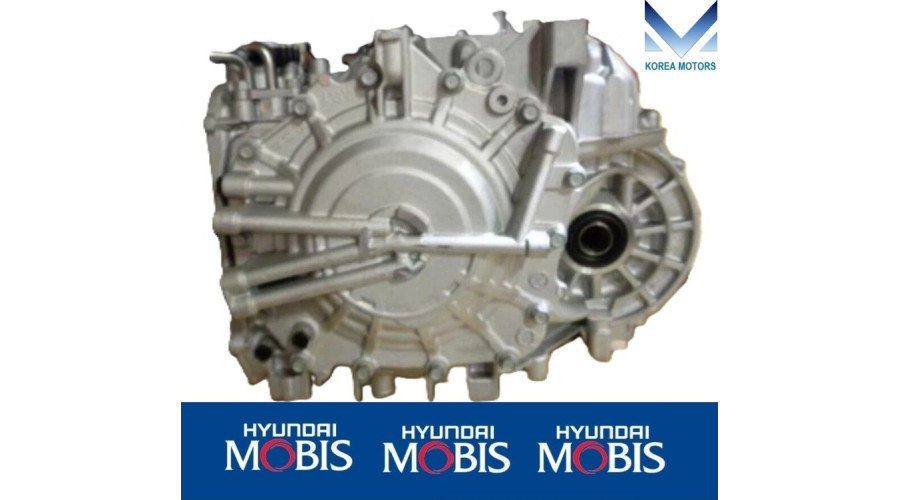

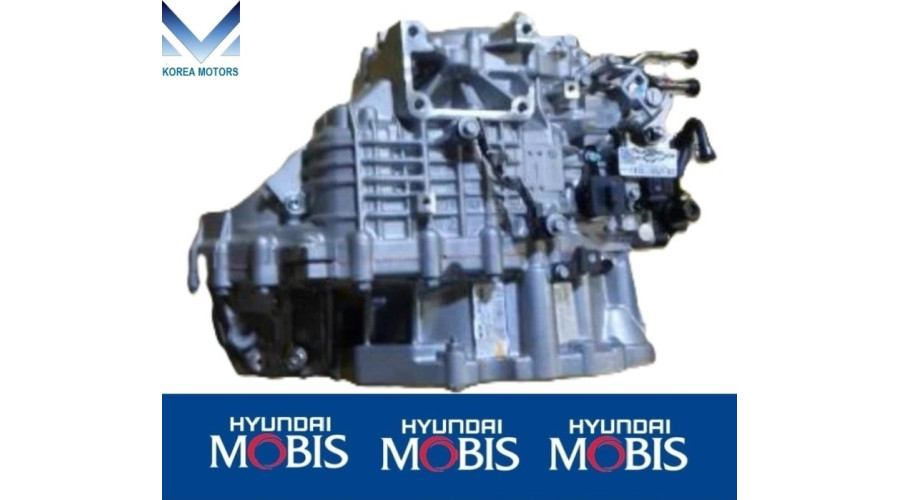

Transmission Ata & tq/conv assy switch 8-speed 2WD/4WD manufacture for Hyundai Kia 2018-26 year

The Hyundai A8MF1 8-speed automatic transmission was first introduced in 2018 and is intended for front-wheel drive and all-wheel drive models with 1.6T/2.5L engines and powerful gasoline engines. Applied for installation on the gasoline engines for volume from 1600 to 2500 cc.

Main engines compatible with the A8MF1:

2.5 GDI / MPI (Smartstream G2.5): This is the primary engine pairing for this transmission. This engine produces approximately 190-194 hp (e.g., G4KN).

1.6 T-GDI (Smartstream G1.6 Turbo): A turbocharged engine producing approximately 180 hp, used in all-wheel drive and front-wheel drive versions of modern models.

2.0 T-GDI / 2.0 GDI Dependent on the regional market and specific vehicle model.

Car models:

The A8MF1 transmission has been in widespread use since 2019-2026 in the following models:

Kia: K5 (DL3), Sorento 4 (MQ4), Sportage 5 (NQ5), Carnival 4 (KA4).
Hyundai: Sonata 8 (DN8), Santa Fe 4 (TM Facelift), Tucson 4 (NX4), Santa Cruz.
Rated up to 27 kg⋅m (265 N⋅m; 195 lbf⋅ft) while having a dry weight of 82.3 kg (181.4 lb).
1 – 4.717 2 – 2.906 3 – 1.864 4 – 1.423 5 – 1.224 6 – 1.000 7 – 0.790 8 – 0.635 R – 3.239
Final drive 3.648 Hyundai Santa Cruze 2.5L
Final drive 3.195 Hyundai Santa Fe (TM) 2.5L Hyundai Sonata (DN8) Tucson 4 (NX4) 1.6T/2.5L
Final drive 3.195 Kia Cadenza (YG) 2.5L Kia K5 (DL3) 2.5L Sportage 5 (NQ5), Carnival 4 (KA4), Sorento 4 (MQ4)

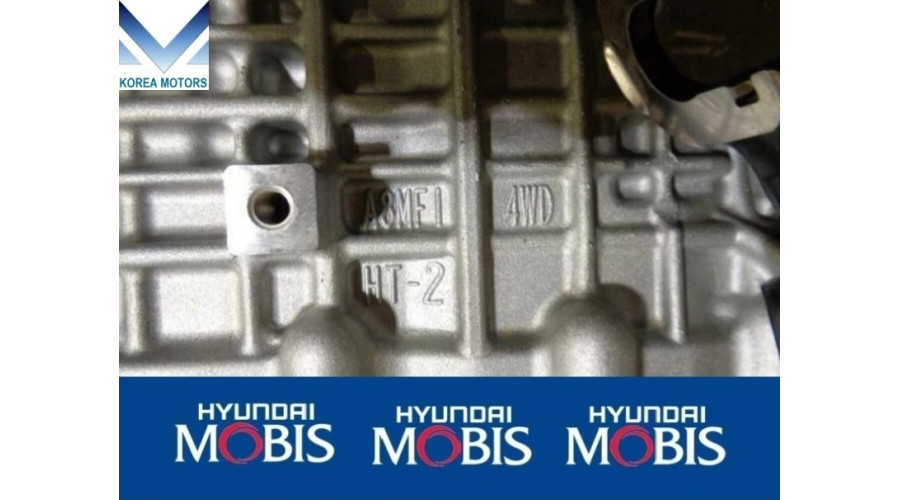

Transmission ATA name: A8F27 A8MF1 2018-26Y
Displacement cc: 1600 (1.6liters), 2500 (2.5liters) Power 180-194Hp (152kWt),
Include: Full complete set ready for installation
Fuel: Gasoline G4KM, G4KN, G4FP, G4FU (CVVD, MHEV, DOHC, MPI, GDI, T-GDI)
Available Options for choose:
- 1.6L T-GDI (2WD/4WD) - 450004G610 450004G611 AUTO TRANSMISSION ASSY
- 2.5L MPI, GDI G4KN (2WD/4WD) - 450003D940 450004GDD0 AUTO TRANSMISSION ASSY
Number of cylinders: Cylinder head type L4/16vl (valves)
MANUFACTURER: MOBIS
ORIGIN: MADE IN KOREA

ATTENTION: To check the compatibility of parts according to the specification, when ordering, you must specify the VIN code of the vehicle chassis!

SHIPPING: Shipping international EMS, UPS air-parcel Door-to-Door service and cargo sea service available. Delivery time UPS 3-10 days and cargo sea depend on final port of destination 25-35 days.
