New front shock absorbers set from Mobis manufacture for Kia Stinger 2020-23 year.

Gas-pressure shock absorber, twin-tube system. MacPherson strut design. Electronic Control Suspension (ECS). Piston rod diameter: 22 mm. Bore diameter: 32 mm. Package dimensions (approximate): 70 x 24 x 22 cm. Mounting method: top pin, bottom clamp.

The ECS system features a component that acts as the actuator for the Dynamic Stability Damping Control (DSDC) system. It allows for real-time damping adjustments by selecting the Drive Mode. Independently adjusting the front and rear dampers reduces roll and improves stability. Communication with the control unit is maintained via a dedicated electrical connector on the top of the strut.

Part code: 54-546 STINGER 2020-23Y

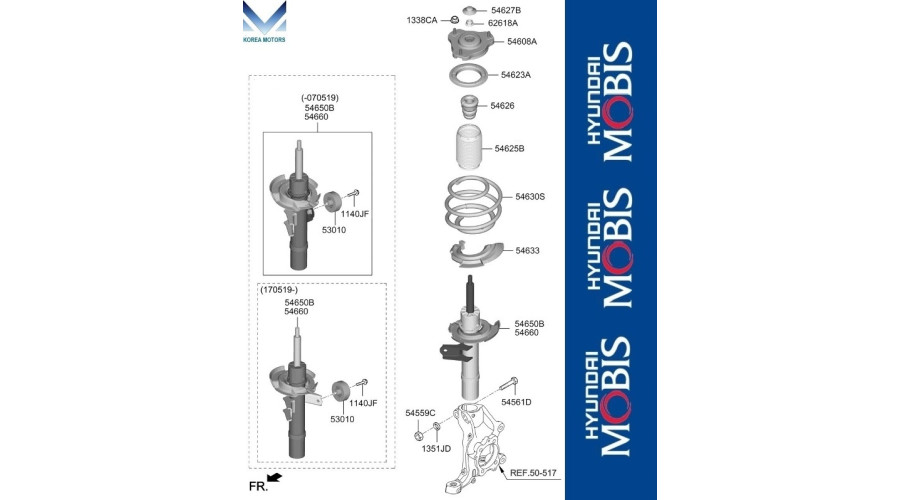

Part NO.: 54650B 54660

Part numbers for left side Available Options for choose:

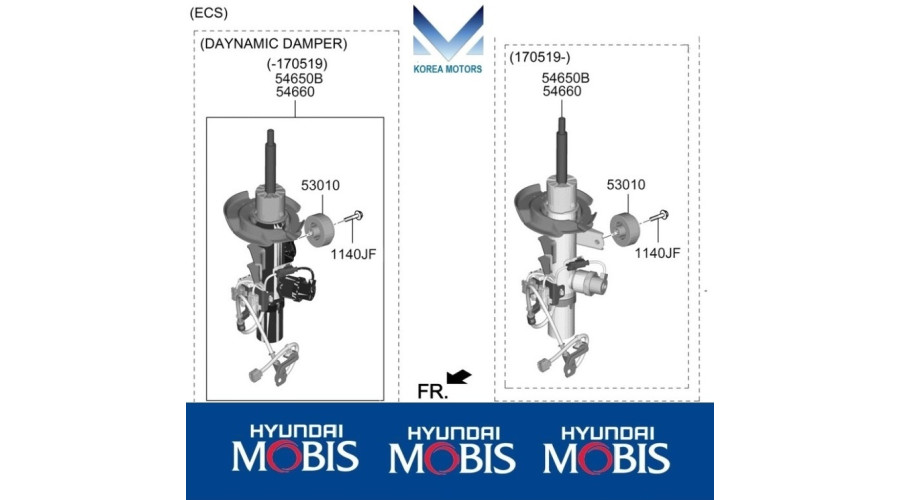

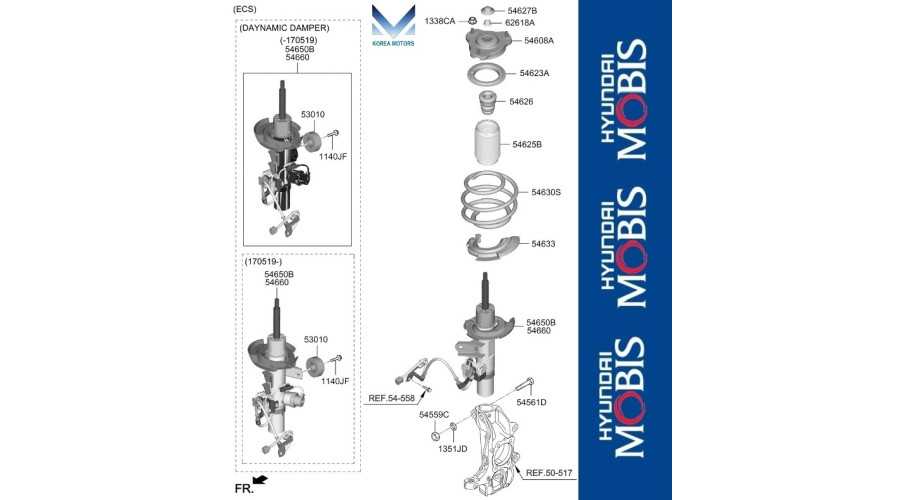

LEFT ECS - DAMP'G FORCE 54611J5KU0 54611J5KV0 54611J5KE0 54611J5480 54611J5KF0 - SHOCK ABSORBER-FRONT, LEFT SIDE (DRIVER SIDE)

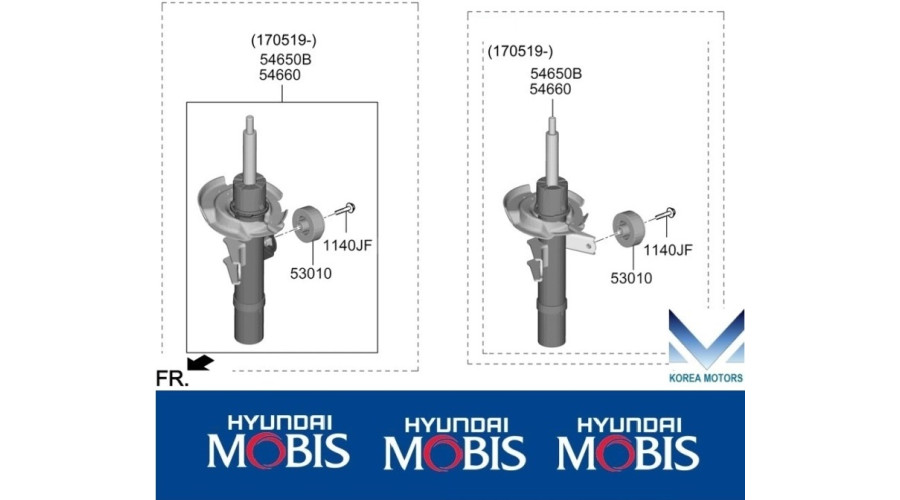

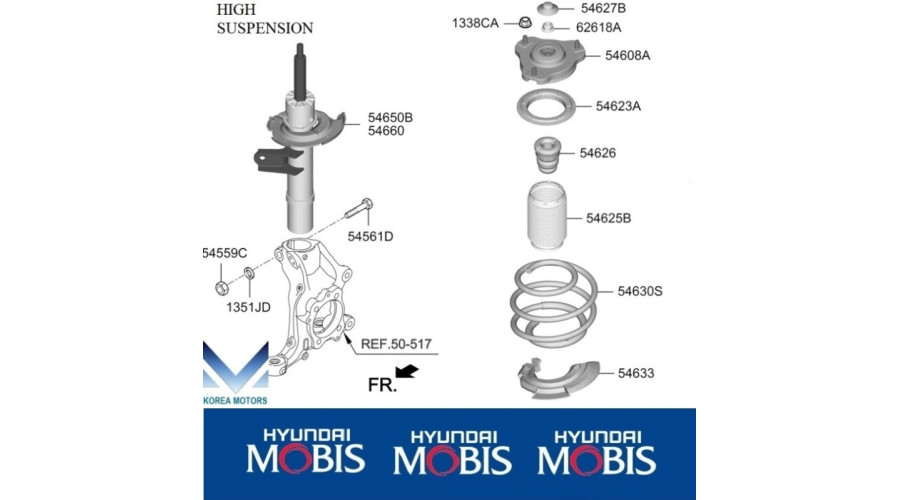

LEFT SIDE 54650J5KC0 54650J5KJ0 54650J5KK0 54650J5KL0 - SHOCK ABSORBER-FRONT, LEFT SIDE (DRIVER SIDE)

Part numbers for right side Available Options for choose:

RIGHT ECS - DAMP'G FORCE 54621J5KV0 54621J5KU0 54621J5KF0 54621J5KE0 54621J5480 - SHOCK ABSORBER - FRONT, RIGHT SIDE (PASSENGER SIDE)

RIGHT SIDE 54660J5KL0 54660J5KC0 54660J5KJ0 54660J5KK0 - SHOCK ABSORBER - FRONT, RIGHT SIDE (PASSENGER SIDE)

Absorber System: Twin-Tube

Type: Gas Pressure

Shock Absorber Type: Suspension Strut

MANUFACTURER: MOBIS

ORIGIN: MADE IN KOREA

SET ASSY: For set select items – 2 pcs

ATTENTION: For verification, compatible of specification lamps after place order need indicate VIN-code of car!

SHIPPING: By EMS (UPS) air-parcel international "Door to Door" service 5-10 days and cargo sea 25-35 days depend on final country.
