Power steering gear box set from Mobis manufacture for KIA Sorento 2009-12 year.

    Power steering is a system for reducing a driver's effort to turn a steering wheel of a motor vehicle, by using a power source to assist steering. Hydraulic or electric actuators add controlled energy to the steering mechanism, so the driver can provide less effort to turn the steering wheel when driving at typical speeds and considerably reduce the physical effort necessary to turn the wheels when a vehicle is stopped or moving slowly. Power steering can also be engineered to provide some artificial feedback of forces acting on the steered wheels. Hydraulic power steering systems for cars augment steering effort via an actuator, a hydraulic cylinder that is part of a servo system. These systems have a direct mechanical connection between the steering wheel and the steering linkage that steers the wheels. This means that power-steering system failure (to augment effort) still permits the vehicle to be steered using manual effort alone. Electric power steering systems use electric motors to provide the assistance instead of hydraulic systems. As with hydraulic types, power to the actuator (motor, in this case) is controlled by the rest of the power steering system.

Part code: 56-577 SORENTO 2009-12Y

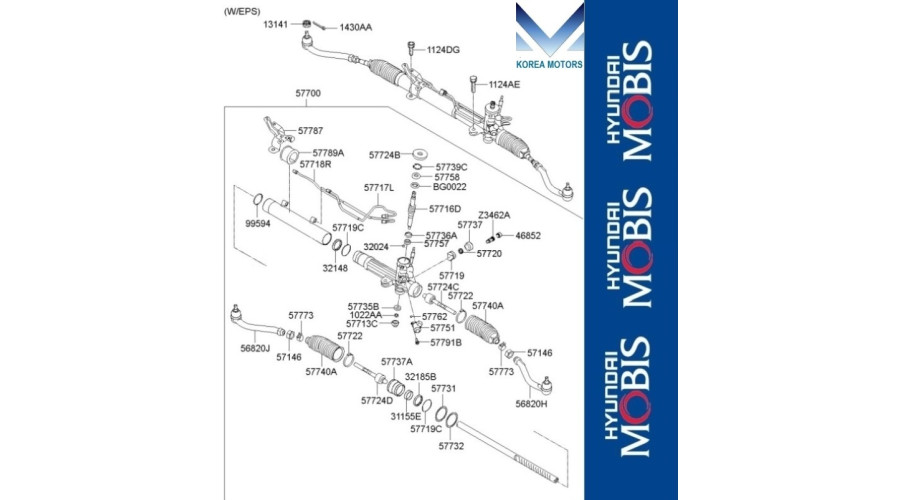

Power steering gear box: 57700

Displacement cc: 2000-2200-2400-3500 (2.0-2.2-2.4-3.5 liters), Power 170-254Hp (110-140kWt),

Fuel: Gas, Petrol, Diesel, Hybrid (TCI, DOHC, MPi, LPi)

Set assy: Steering gear box –1 PCS;

Part numbers Available Options for choose:

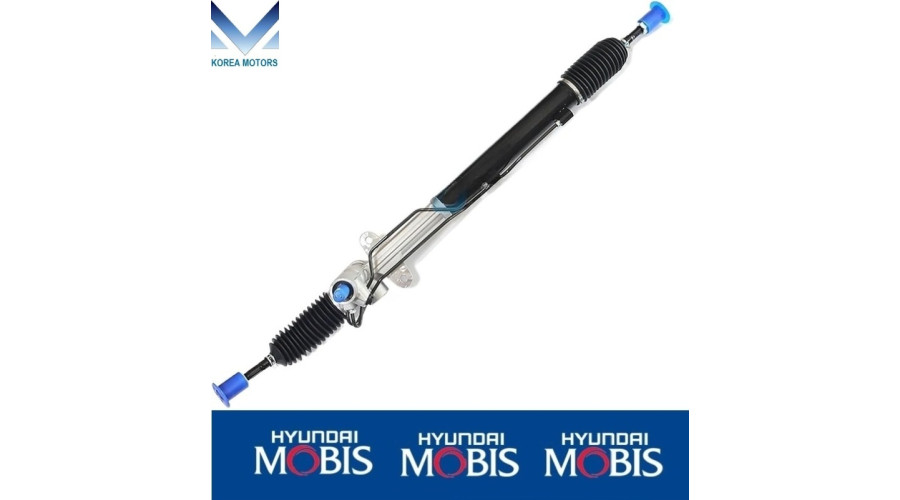

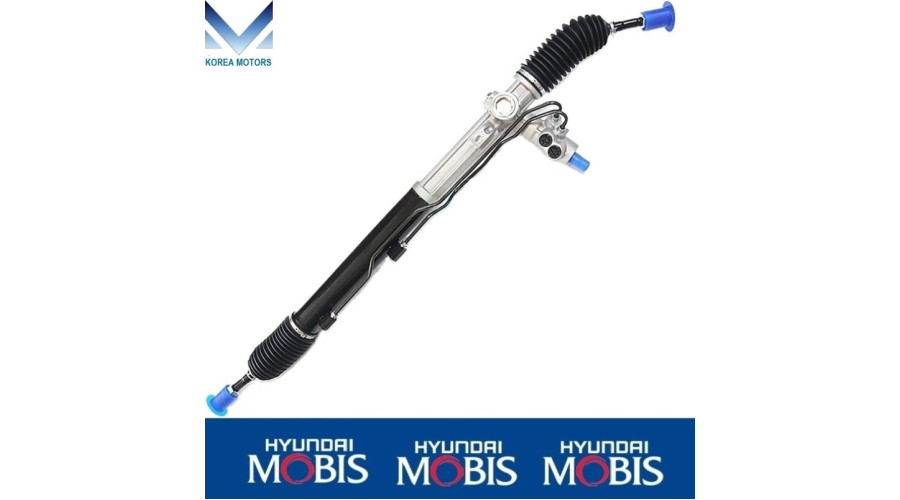

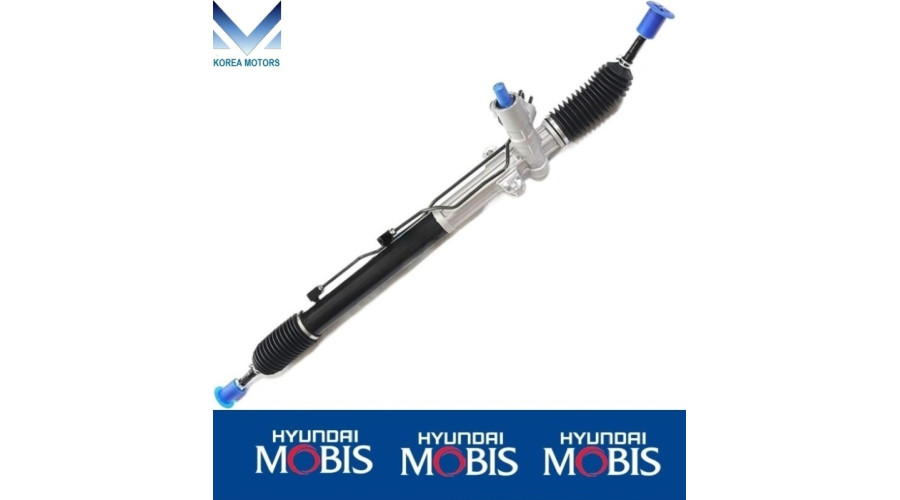

1. GEAR & LINKAGE P/S 5577002P000 577002P100 577002P110 577002B210 577000W100 GEAR & LINKAGE ASSY-P/S 57700 13.03.2009 - 01.07.2012 (5711A3) POWER STRG – 1pcs

Part numbers Available Options for choose:

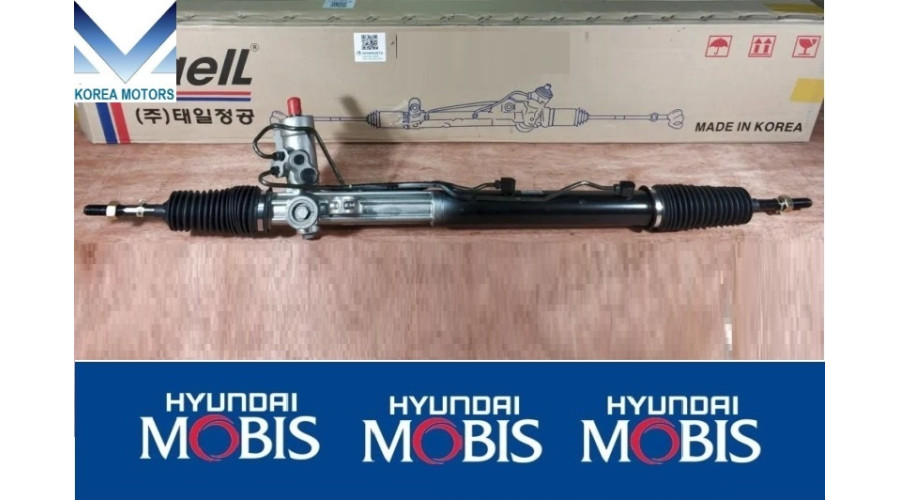

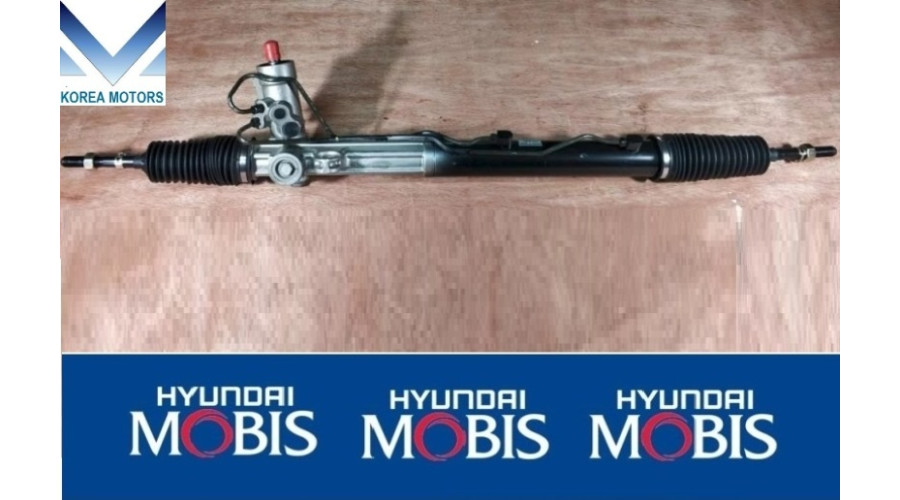

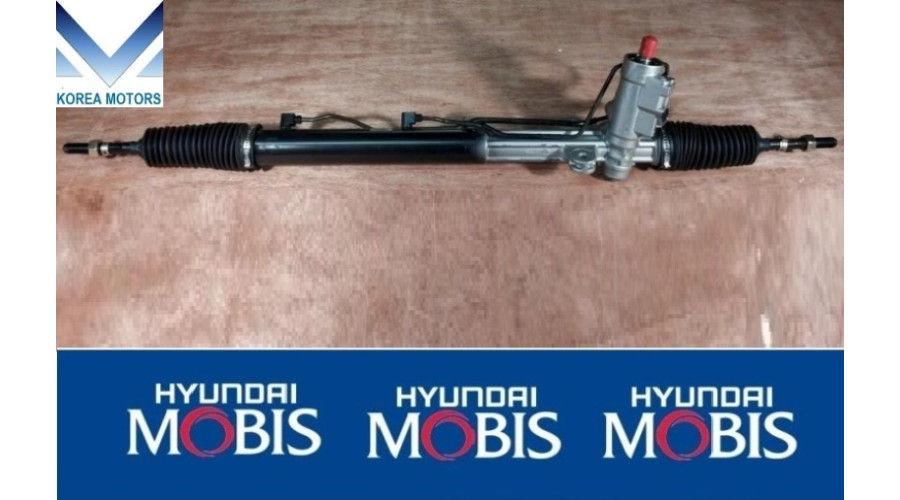

2. EPS GEAR & LINKAGE P/S 577002P500 577001U000 GEAR & LINKAGE ASSY-P/S 57700 13.03.2009 - 01.07.2012 (5711A3) EPS (ELECTRIC POWER STRG) – 1pcs

Part numbers Available Options for choose:

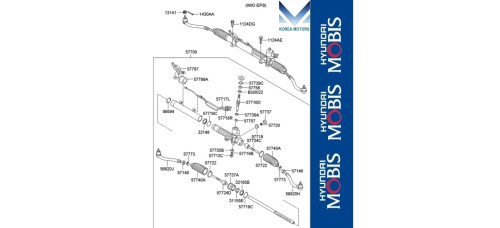

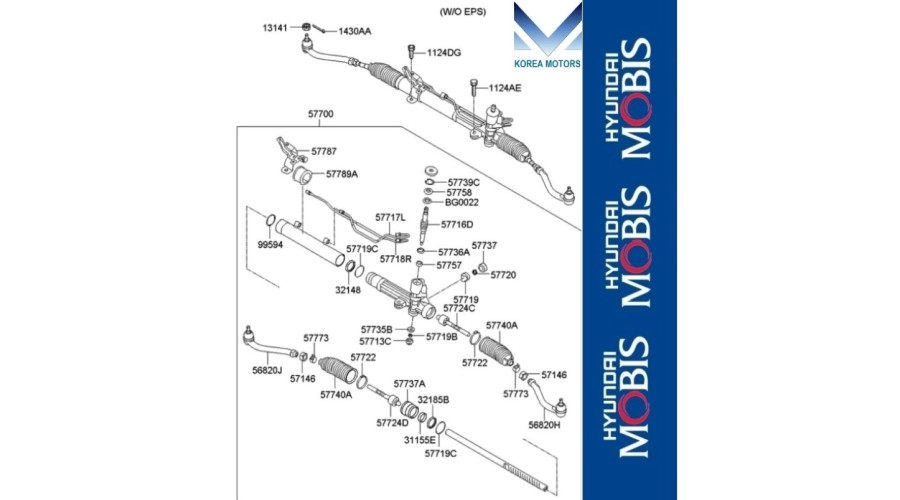

3. REPAIR KIT STEERING

577172P500 TUBE ASSY-FEED -1pcs

577242P000  JOINT ASSY-INNER BALL – 1pcs

577223M900 STEEL-BEND – 2pcs

577402P000 BELLOWS-STEERING GEAR BOX – 2pcs

577732G000 CLIP-CIRCULATION – 2pcs

577592J000 NUT – 2pcs

568202P000 END ASSY-TIE ROD,RH – 1pcs

577194H100 O-RING – 2pcs

577503E000 HOUSING-INSERT – 1pcs

577892P000 RUBBER-STEERING GEAR MTG – 1pcs

577333C000 RETAINING-RING – 1pcs

577373C000 ROD SEAL – 1pcs

577193E010 BUSH-INSERT – 1pcs

577352P000 BUSH ASSY-RACK – 1pcs

577242P100 JOINT ASSY-INNER BALL – 1pcs

568202P900 END ASSY-TIE ROD,LH – 1pcs

577193M900 YOKE ASSY-RACK SUPPORT – 1pcs

577202P000 SPRING-YOKE – 1pcs

577372P000 PLUG-YOKE – 1pcs

577342P000 BEARING-NEEDLE – 1pcs

577363C000 OIL-SEAL – 1pcs

577213E010 INPUT SHAFT  - 1pcs

577582P000 OIL-SEAL – 1pcs

577394H010 SNAP RING-CAP – 1pcs

577162P500 VALVE ASSY – 1pcs

Manufacturer: MOBIS

ORIGIN: MADE IN KOREA

NOTE: You can select the required type of spare part from the options menu on the right side of the page and add it to the cart to place an order.

ATTENTION: For verification, compatible of specification after place order need indicate VIN-code of car!

SHIPPING: Delivery only by UPS air-parcel "Door-to-door" service available to any country delivery time 3-7 days and sea cargo 25-35 day
